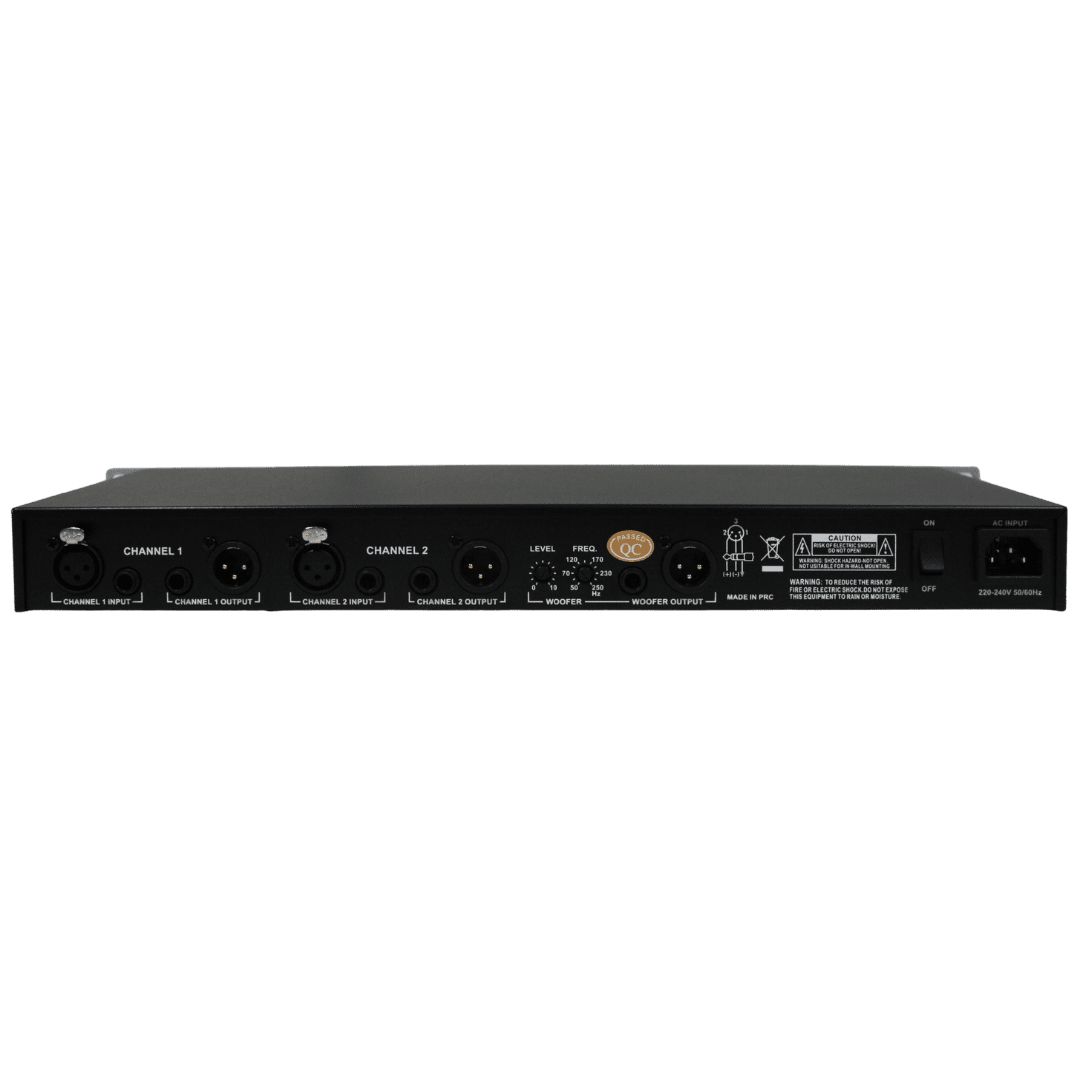

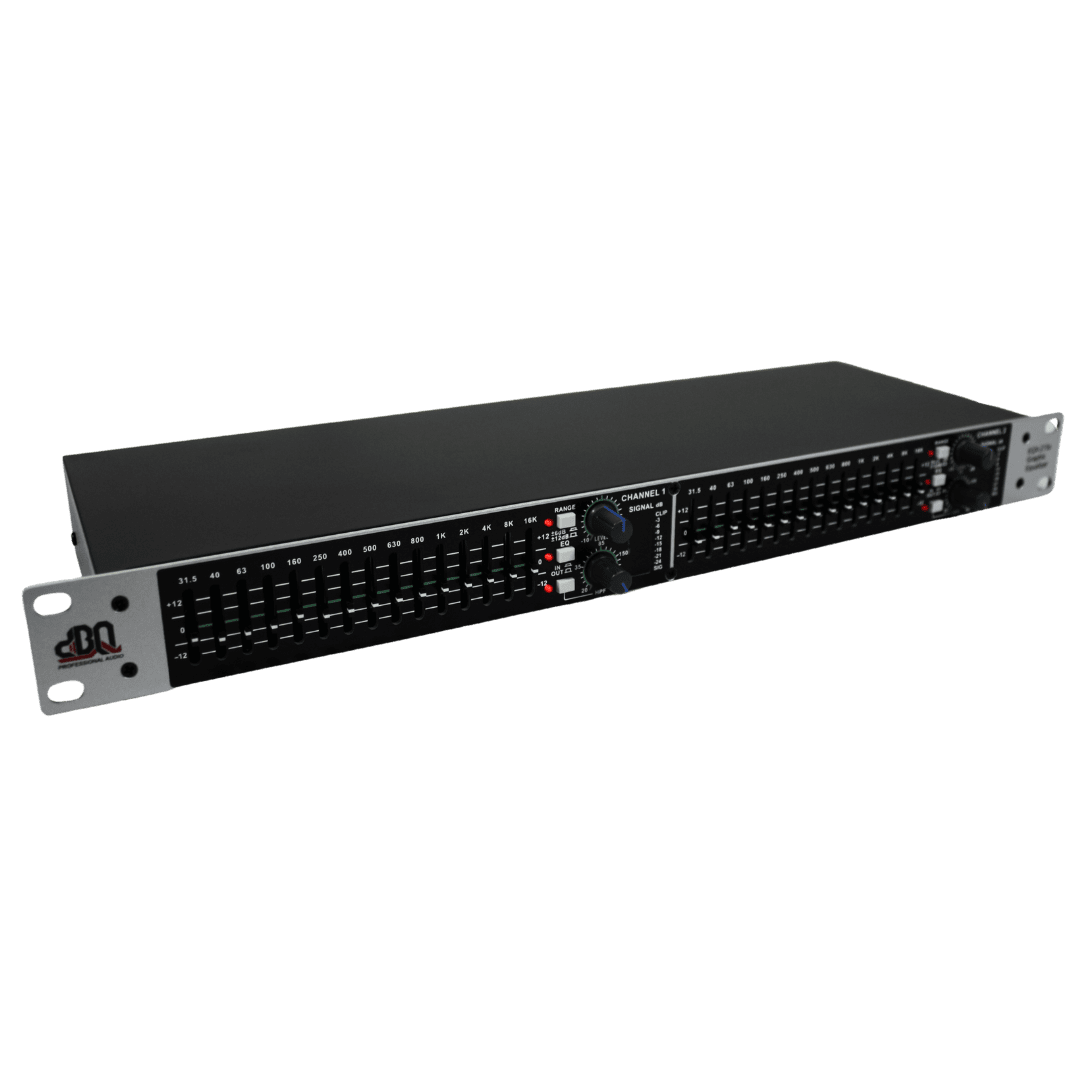

Equalizer dBQ EQX 215S
Dual 15-band EQ dengan desain active balanced untuk kestabilan maksimal. Menawarkan gain ±10 hingga ±12 dB, channel separation >85 dB, serta THD rendah <0.1%. Ditujukan untuk kontrol dasar sistem PA, karaoke dan event hall.
Specification
Type: Active Balanced
Type: Servo-Balanced
Impedance: 20K Ω
Source Impedance: 1000 Ω
Max Level: +23 dB
Min Load Impedance: 2000 Ω
Connectors: 1/4*Phone dack (TRS) XLR
Max Level: +23 dB
Frequency Response: 31.5 Hz-16 KHz+0.25 dB
THD: <0.1%@20 dB
Type: Constant Q/Wein Bridge
IM Distortion (SMPTE): <0.1%@20 dB
Number: 15
Output Hum & Noise (Unweighted): -94 dB
Bandwidth: 1/3 Octave
Channel Separation: >85 dB@1 Khz
Tolerance: +3%
Gain Control: -10 to+10 dB
Range: +6 dB, +12 dB (Switchable)
Nominal Voltage: 220-240 VAC (50-60Hz)
Subsonic Filter: 18 dB/Octage@20-250 Hz
Minimal Voltage: 200 VAC
Power: 15W
