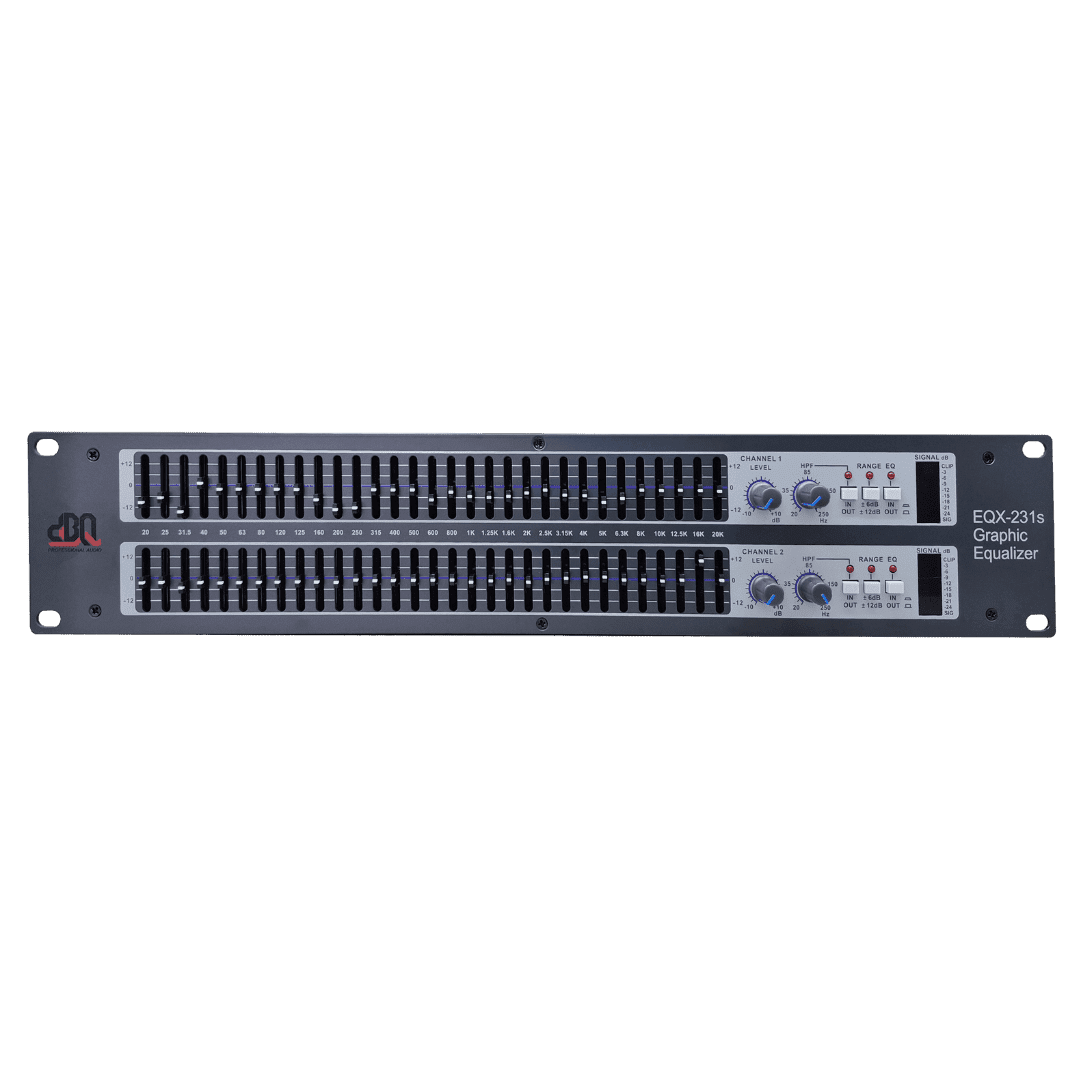

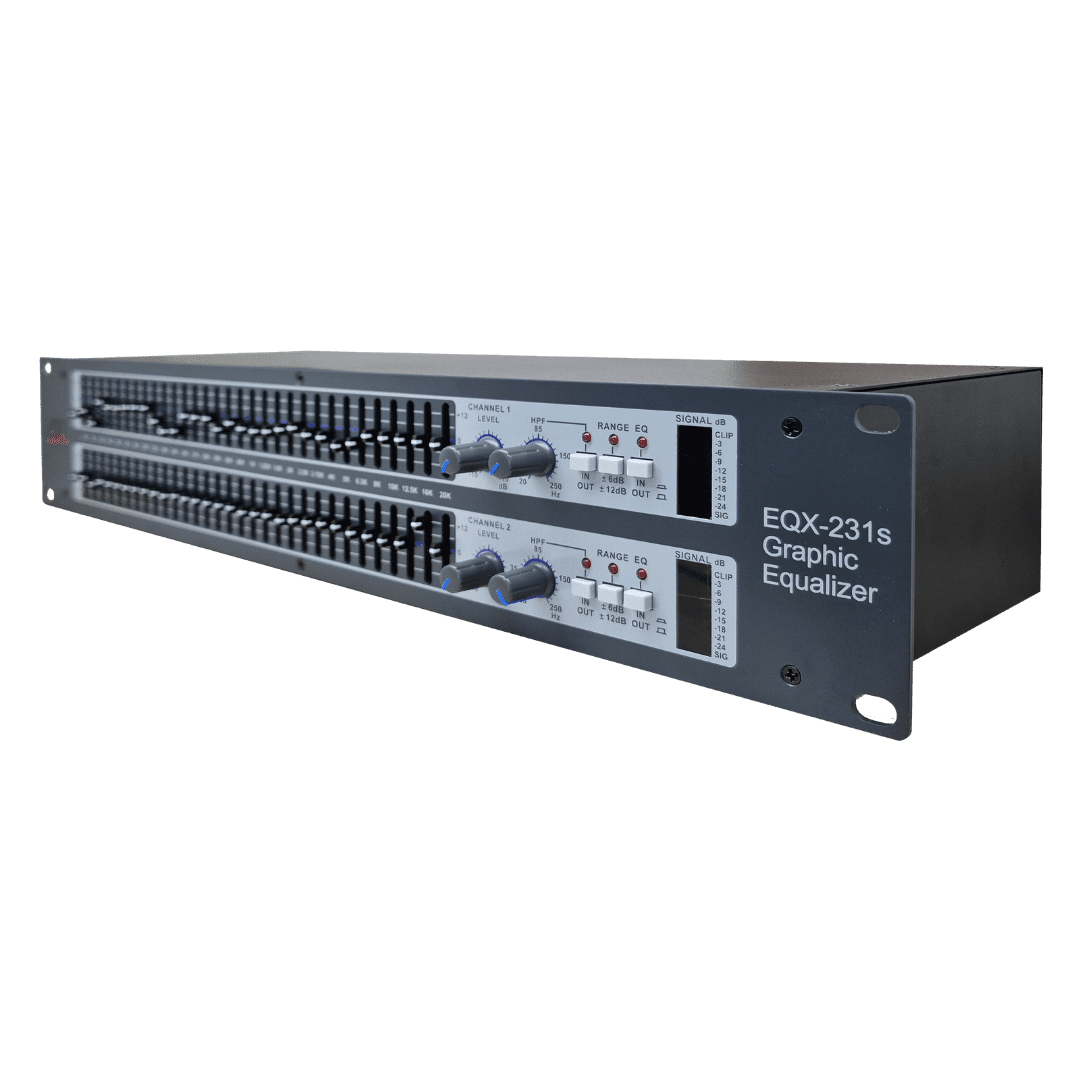

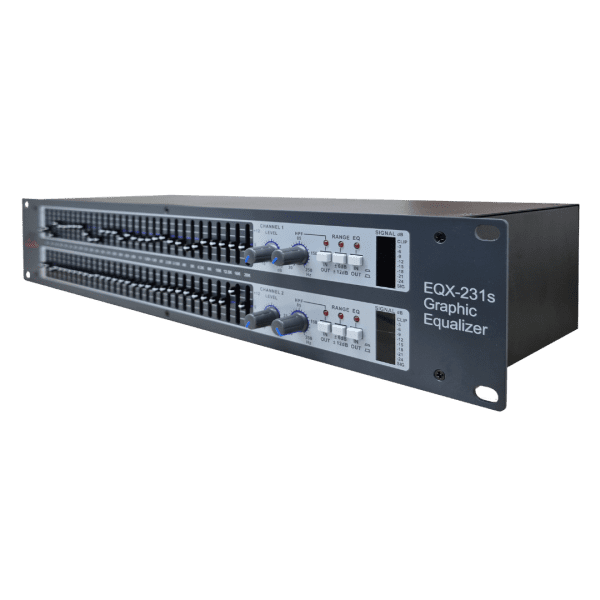

Equalizer dBQ EQX 231S
EQ profesional dual 31-band dengan bandwidth 1/3 octave dan gain ±12 dB. Dilengkapi subsonic filter 18 dB/oct dan THD <0.1%. Solusi presisi untuk instalasi besar dan sound system profesional.
Specification
Type: Active Balanced
Type: Servo-Balanced
Impedance: 20K Ω
Source Impedance: 1000 Ω
Max Level: +23 dB
Min Load Impedance: 2000 Ω

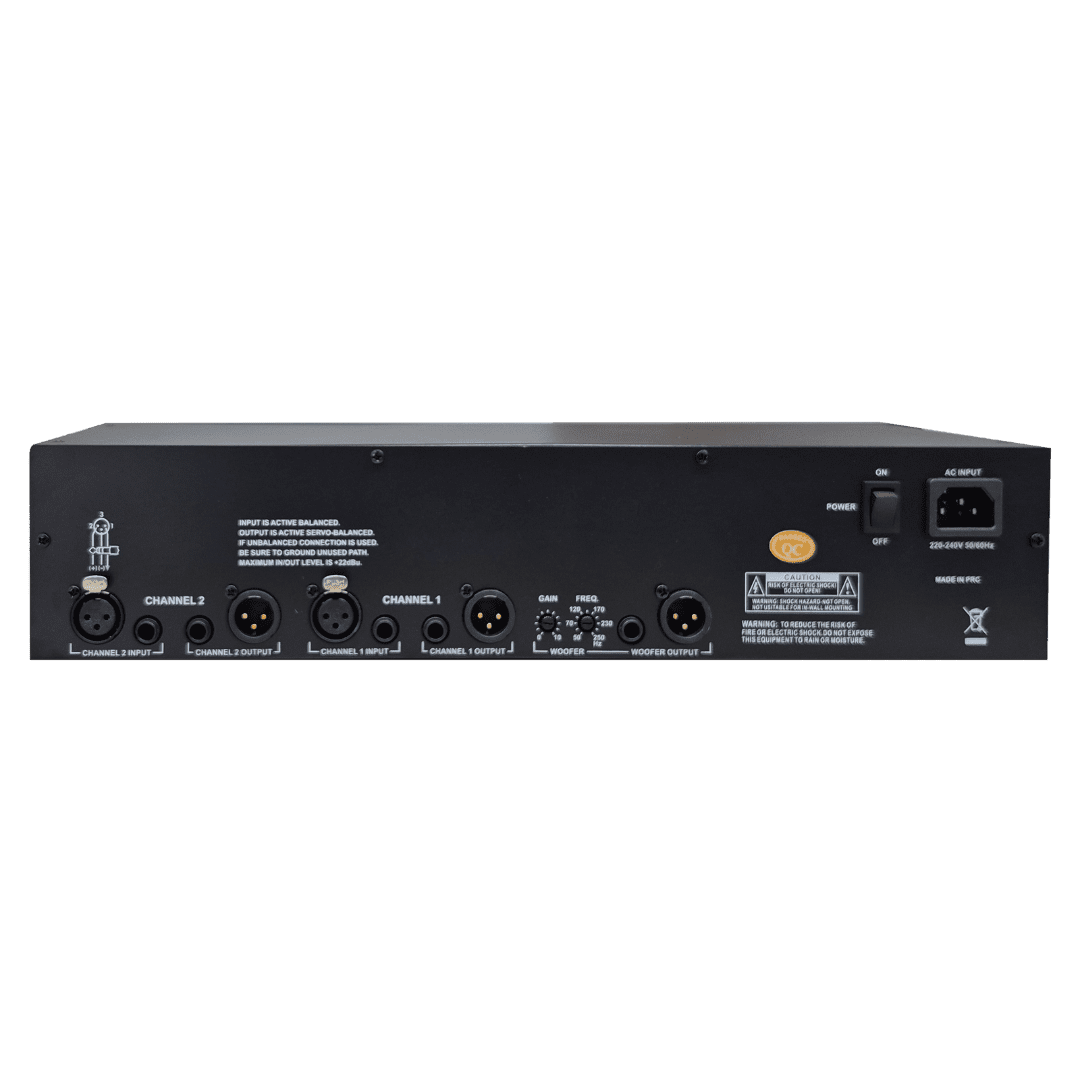

Connectors: 1/4*Phone dack (TRS), XLR
Max Level: +23 dB
Frequency Response: 31.5 Hz-16 KHz+0.25 dB
THD: <0.1%@20 dB
Type: Constant Q/Wein Bridge
IM Distortion (SMPTE): <O0.1%@20 dB
Number: 15
Output Hum & Noise (Unweighted): -94 dB
Bandwidth: 1/3 Octave
Channel Separation: >85dB@1 Khz
Tolerance: +3%
Gain Control: -10 to+10 dB
Range: 6 dB, +12 dB (Switchable)
Nominal Voltage: 220-240 VAC (50-60 Hz)
Subsonic Filter: 18dB/Octage@20-250 Hz
Minimal Voltage: 200 VAC
Power: 15 W
