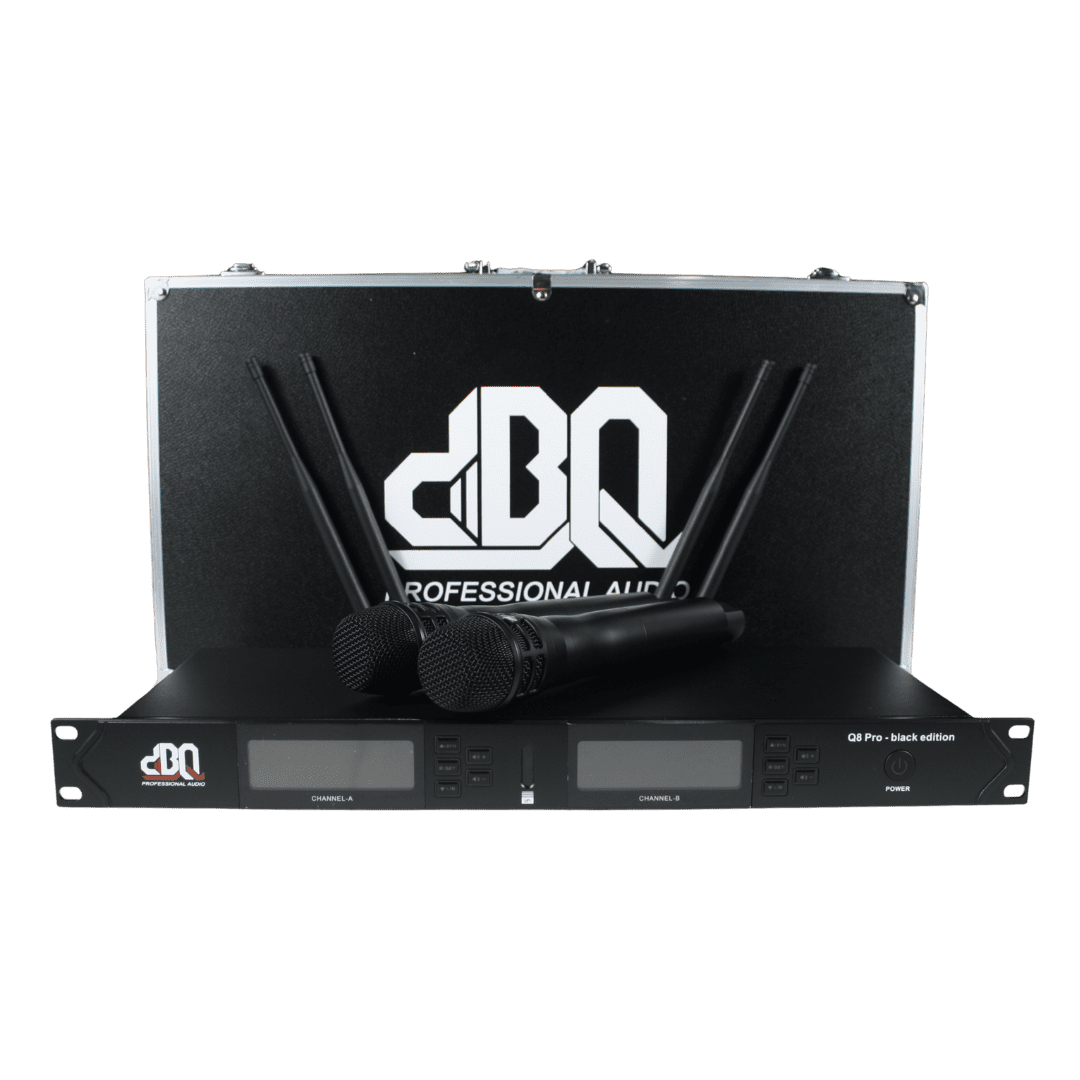

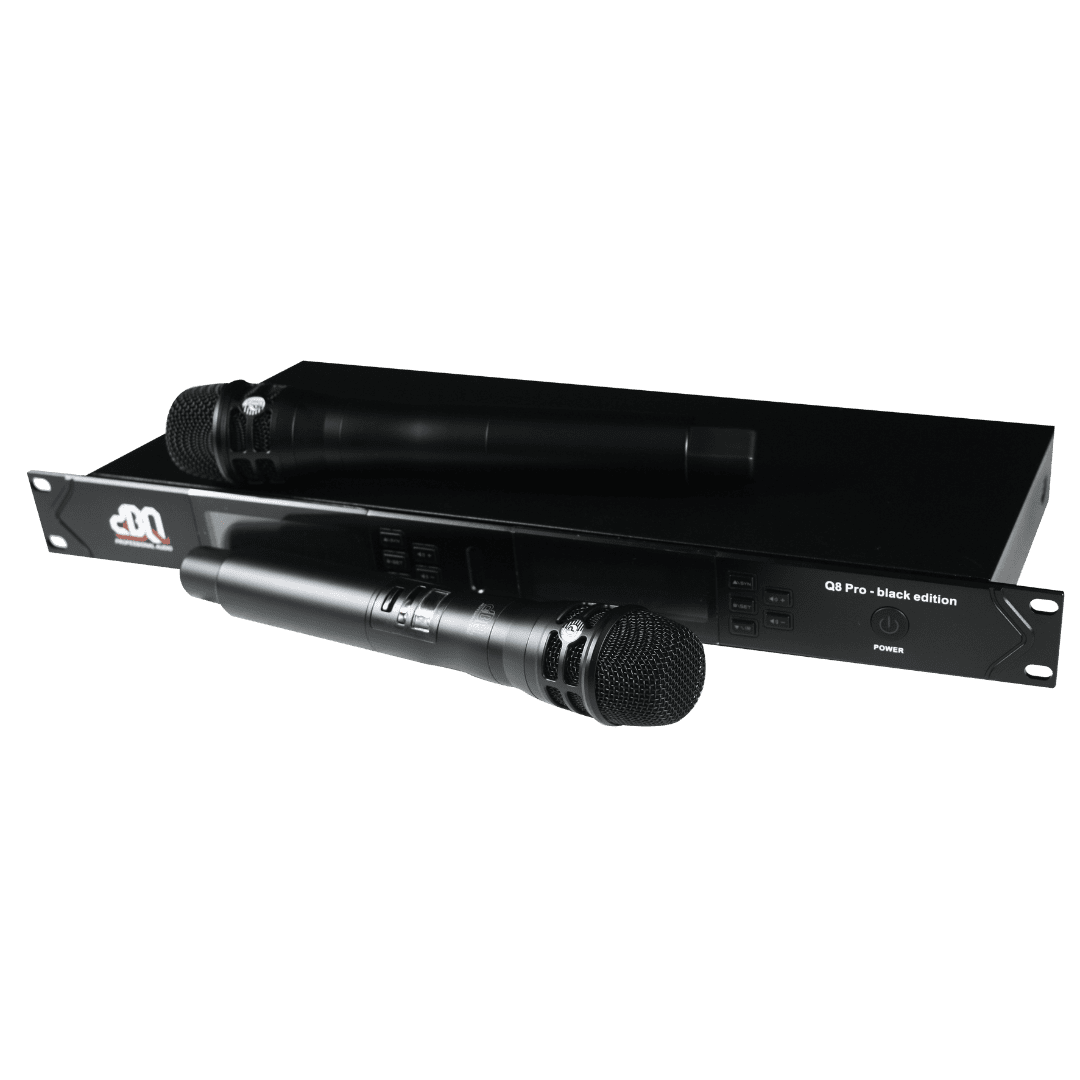

Microphone dBQ Q8 PRO Black Edition
Sistem wireless profesional dengan 200 channel yang stabil dan presisi, rentang frekuensi 640.700–693.450 MHz, serta inframerah otomatis untuk penyetelan cepat. Receiver menggunakan PLL phase-locked loop dengan sensitivitas penerimaan 113 dBm dan rasio S/N >108 dB. Dengan jangkauan hingga 100 meter dan build quality premium, Q8 Pro Black Edition sangat cocok untuk event profesional, live show, maupun penggunaan instalasi audio.
Specification
System
Frequency Range: 640.700-693.450 MHz
Modulation Mode: FM Specification receiver
Channel Number: 200 saluran
Frequency adjustment: Automatic infrared
Operational Temperature: -18°C~+75°C
Offset Degree: 45 KHz
Frequency Respons: 60 Hz-18 KHz
Rasio S/N: >105dB
THD: <0.5%
Receiver Range: 100m

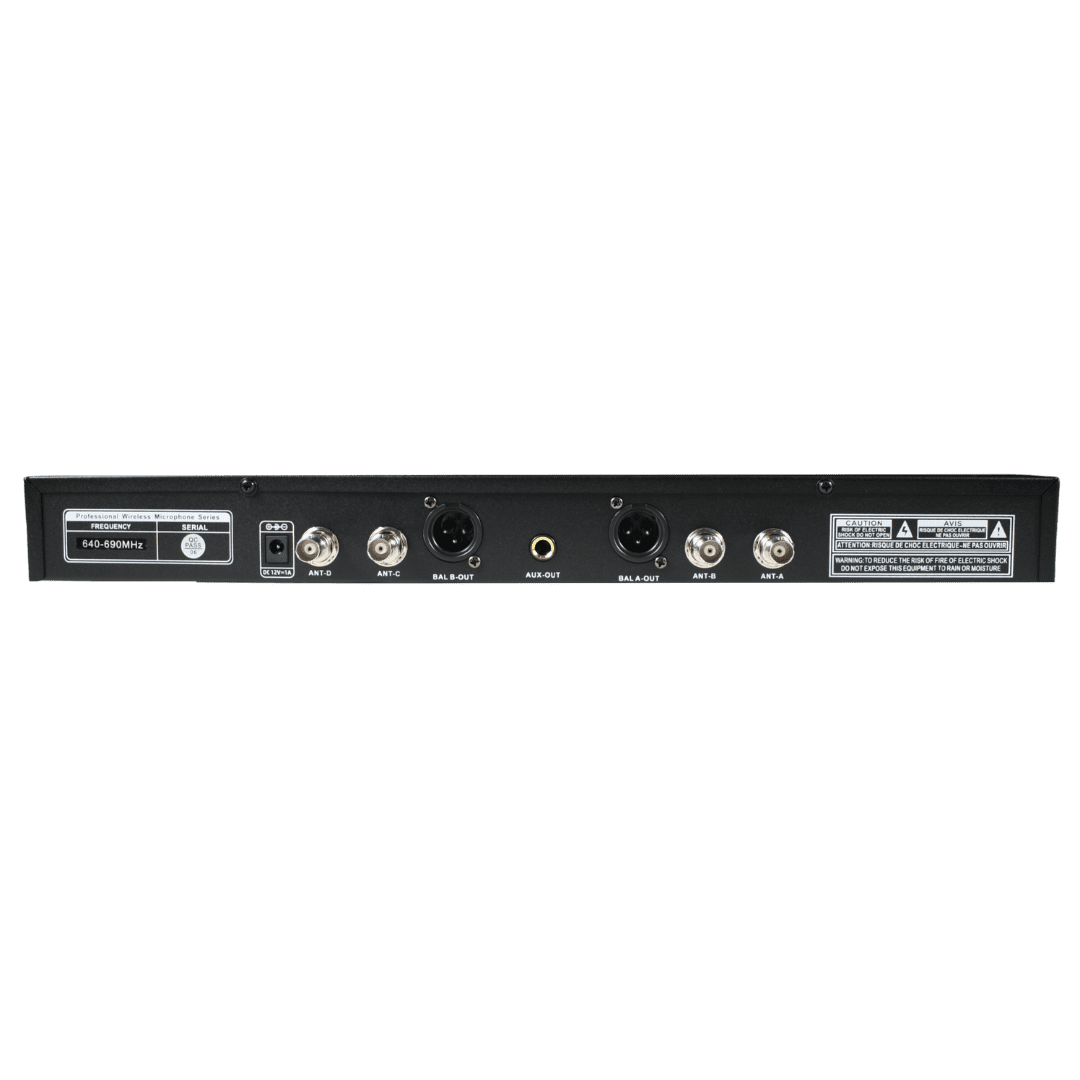

Receiver
Oscillation Mode: PLL phase-locked loop
Receiver Sensitivity: 11 dBm (40 dB S/N)
Spurius emphasis: <@80 dB
Insert Minimum: -12 dB
Frequency Error: <10 PPM
THD: 0.16%
Working Voltage: DC12 V
Power Suplly Current: 380 mA
Power Consumption: 4 W
Transmitter
Oscillation Mode: PLL phase-locked loop
Output Power: 1l dBm/3 mW
Frequency Error: <l0 PPM
Power Suplly: 2x 15 V Battery
Usage Time: More or less 8 Hours
