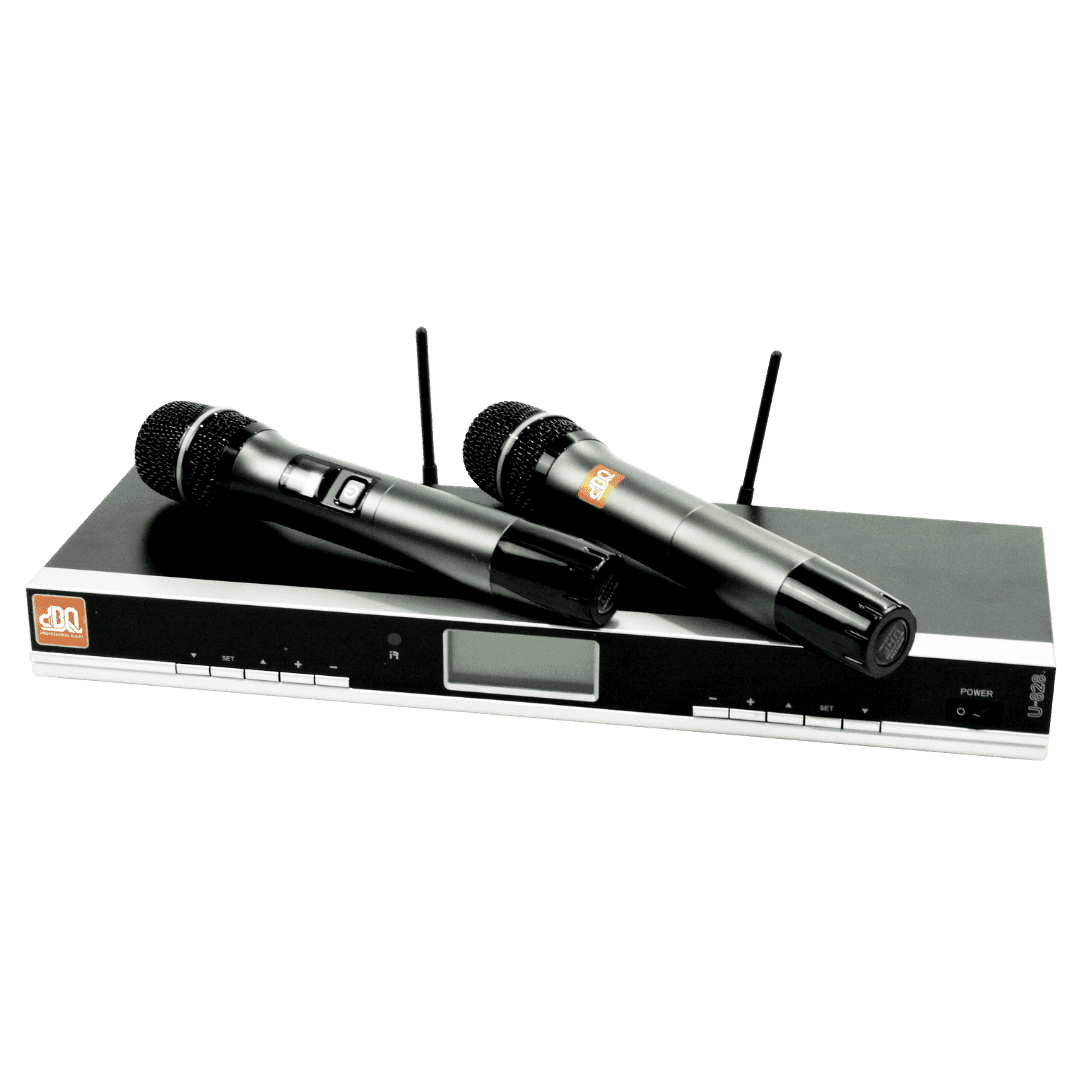

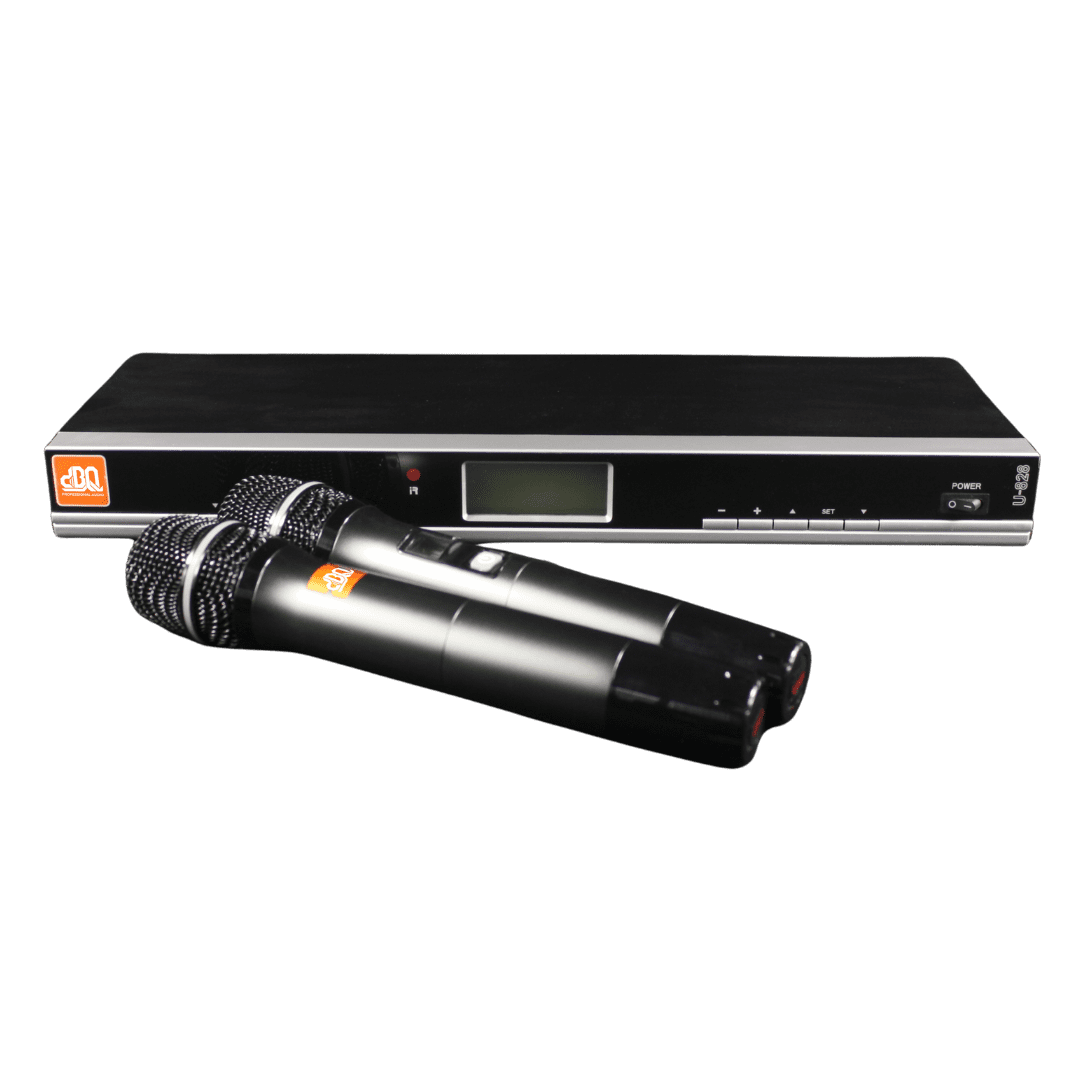

Microphone dBQ U 828
UHF wireless microphone system dengan 32 channel, dirancang untuk performa stabil dan suara jernih. Memiliki frekuensi A: 645.250–664.250 MHz dan B: 665.250–684.250 MHz, serta SNR ≥ 50 dB. Dilengkapi output TRS 6.3 mm dan power supply 12V DC, U-828 cocok untuk penggunaan indoor seperti panggung menengah, acara publik dan instalasi audio profesional.
Specification
System
Frequency range:
A. 645.250-664.250MHz
B. 665.250-684.250MHz
Channels: 40CH
Frequency space: 1MHz
Working distance: =30m
Frequency width: 50MHz
Receiver
S/N ratio: >50dB
Mute: mute & lock loop circuit
Display: LCD
Power supply: 12DC, 1250mA
Output connection: Unbalance TRS6.3mm socket
Signal pick up: CPU controlled selection & pilot identification

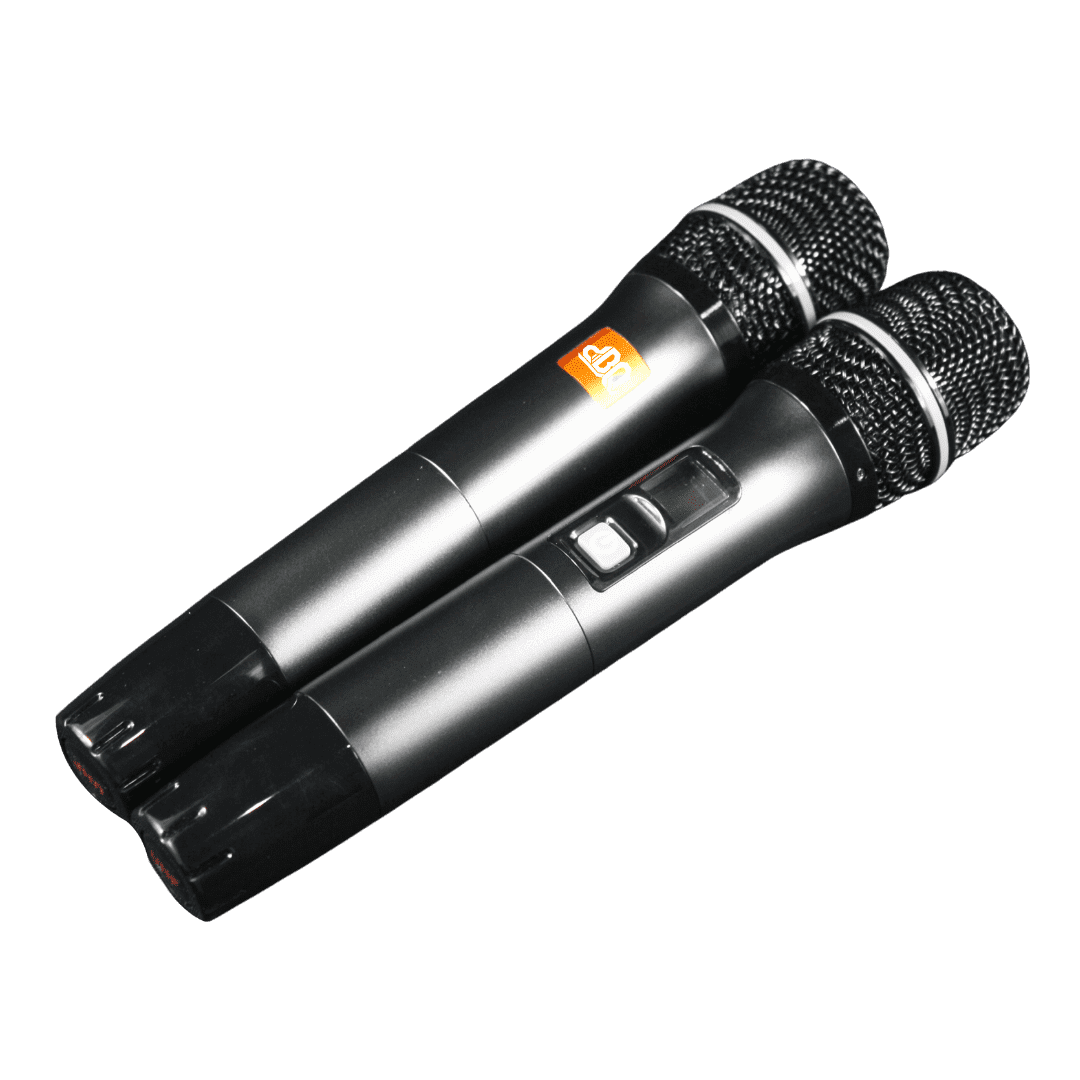

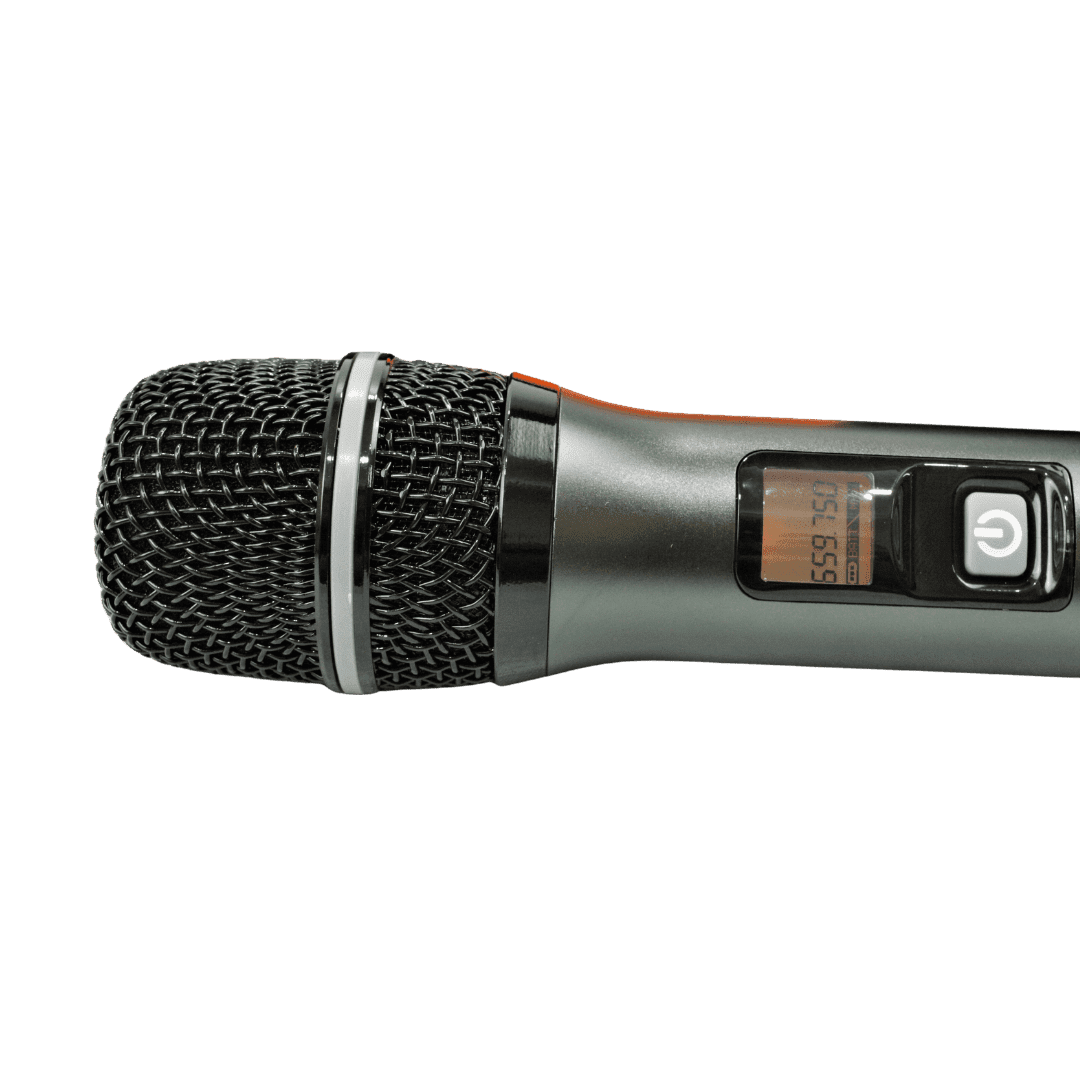

Transmitter
Frequency range: 645.250-684.250MHz
Channels: 40CH
Frequency space: 1MHz
Frequency width: 50MHz
Display: LCD + color backlit
Capsule: Dynamic
Two level power: high-low
